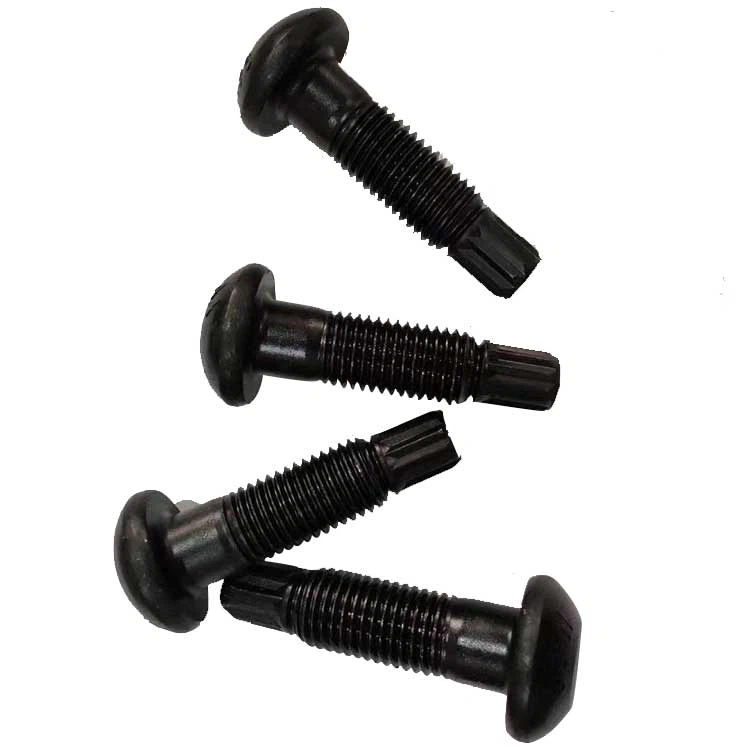

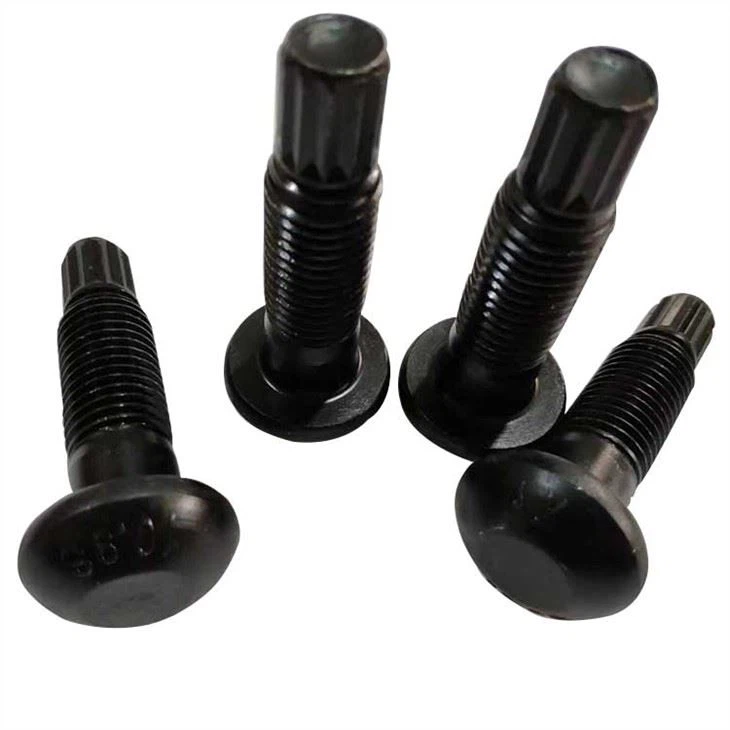

EN 14399 (-10 cup) Torshear Type High Strength Bolt

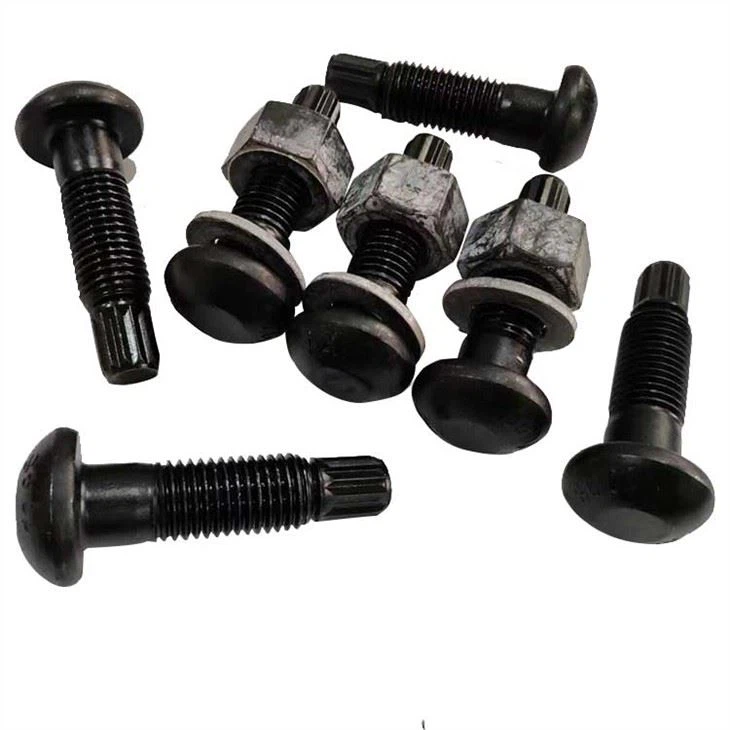

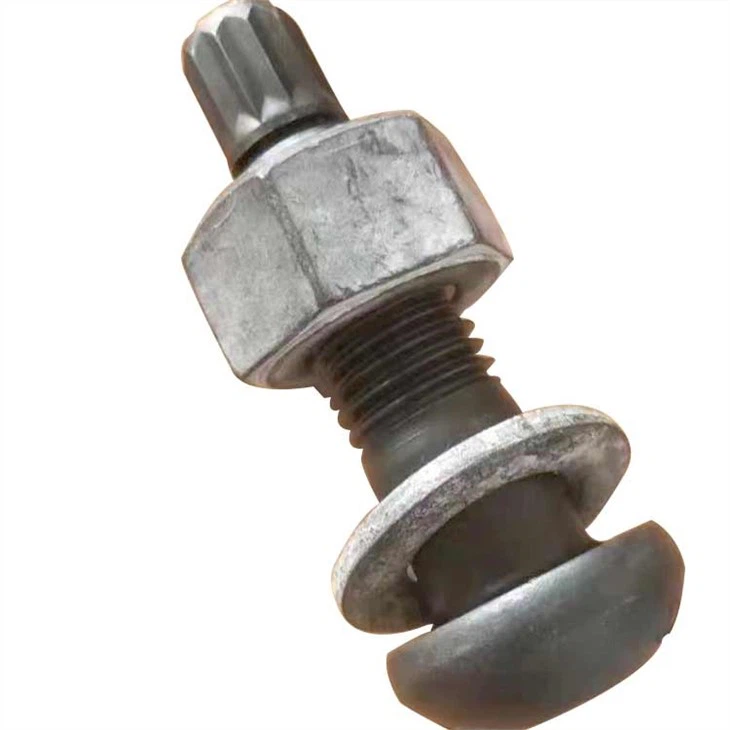

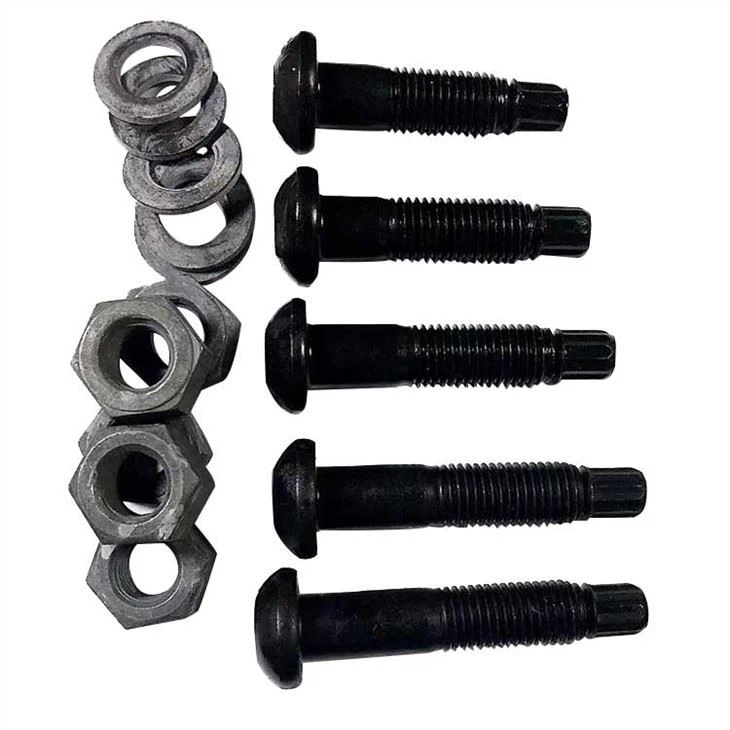

Description:Sets Of Torshear Type High Strength Bolt Hexagon Nuts And Plain Washer For Steel Structures

Tension Control Bolts, TC Bolts or Twist Off Bolts are now the most popular choice in high-strength structural bolting and formally recognized by the AISC and the RCSC as an approved installation method.

Additional information

Description:Sets Of Torshear Type High Strength Bolt Hexagon Nuts And Plain Washer For Steel Structures

material：Stainless steel, carbon steel and other metal materials

Advantages：Our Torshear Type High Strength Bolt assemblies are used in a wide range of applications, from bridge splice plates to beam-to-column connections, from stadia roof trusses to rail switches and crossings. The combination of a TC bolts superior tensile strength and phenomenal ductility result in a truly universal bolt that can be employed in almost all steelwork connections.

“Proper tension ensured

Dependable & Repeatable results

Can be used in shear or in tension

One man installation on one side of the structure

Light weight electric wrench can install multiple diameters

Quick & easy installation, no match marking required

Reduced job site noise”

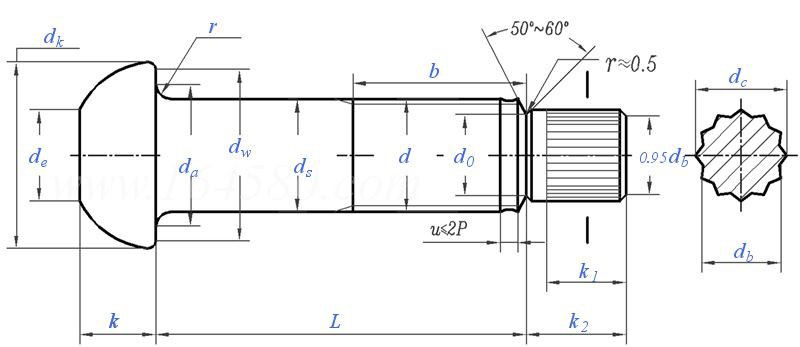

Screw Thread		M16	M20	(M22)	M24	(M27)	M30
d
P	Pitch	2	2.5	2.5	3	3	3.5
da	max	18.83	24.4	26.4	28.4	32.84	35.84
ds	max	16.43	20.52	22.52	24.52	27.84	30.84
ds	min	15.57	19.48	21.48	23.48	26.16	29.16
dw	min	27.9	34.5	38.5	41.5	42.8	46.5
dk	max	30	37	41	44	50	55
k	Nominal Size	10	13	14	15	17	19
	max	10.75	13.9	14.9	15.9	17.9	20.05
	min	9.25	12.1	13.1	14.1	16.1	17.95
k1	min	12	14	15	16	17	18
k2	max	17	19	21	23	24	25
r	min	1.2	1.2	1.2	1.6	2	2
d0	≈	10.9	13.6	15.1	16.4	18.6	20.6
db	Nominal Size	11.1	13.9	15.4	16.7	19	21.1
	max	11.3	14.1	15.6	16.9	19.3	21.4
	min	11	13.8	15.3	16.6	18.7	20.8
dc	≈	12.8	16.1	17.8	19.3	21.9	24.4
de	≈	13	17	18	20	22	24
b		–	–	–	–	–	–
Weight of per 1000 steel products(≈kg)		–	–	–	–	–
