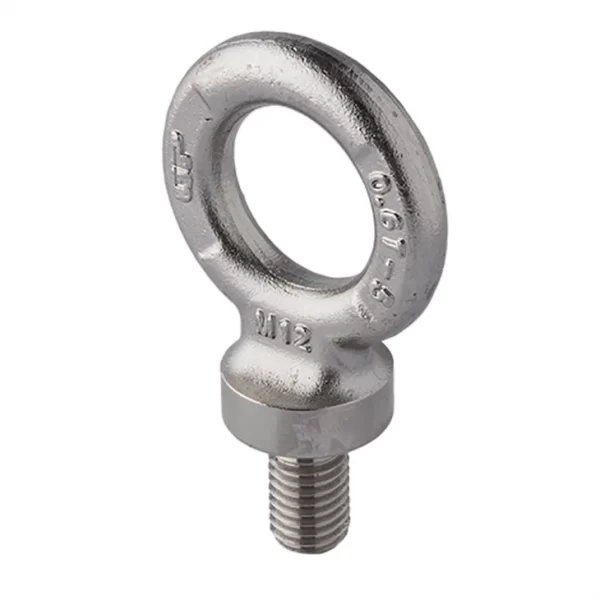

Lifting Eye Bolts DIN 580 – 2018

DIN 580 – 2018 Eye bolts are commonly used components in various construction.

Additional information

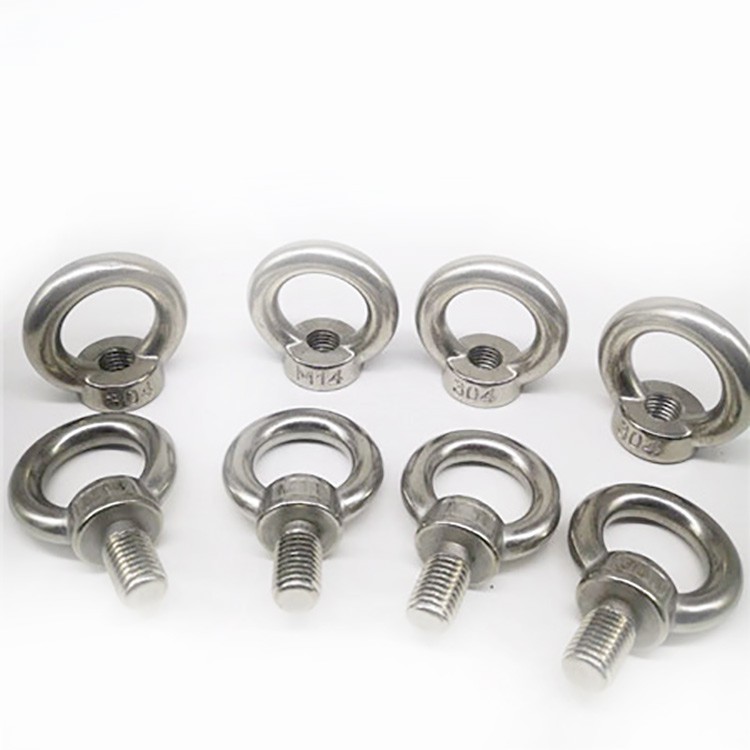

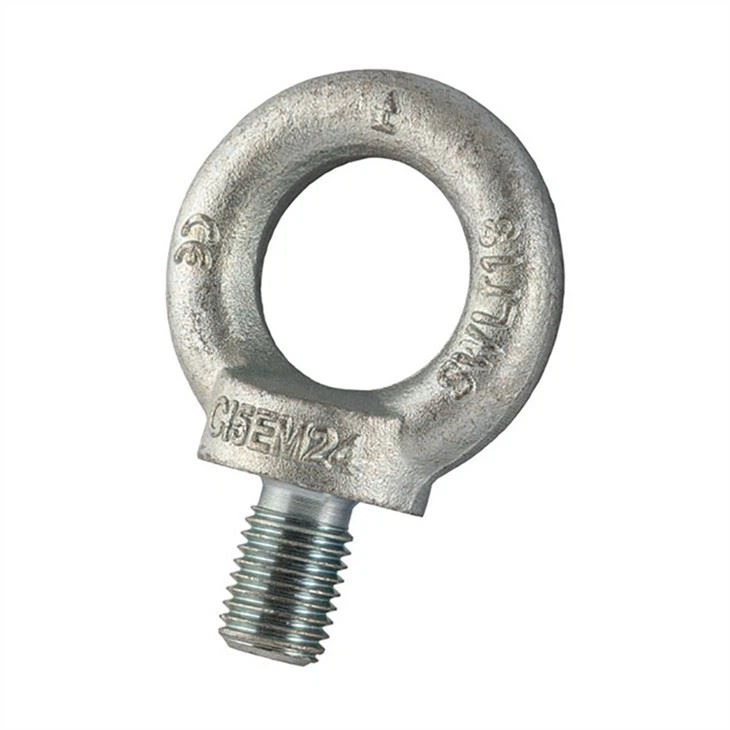

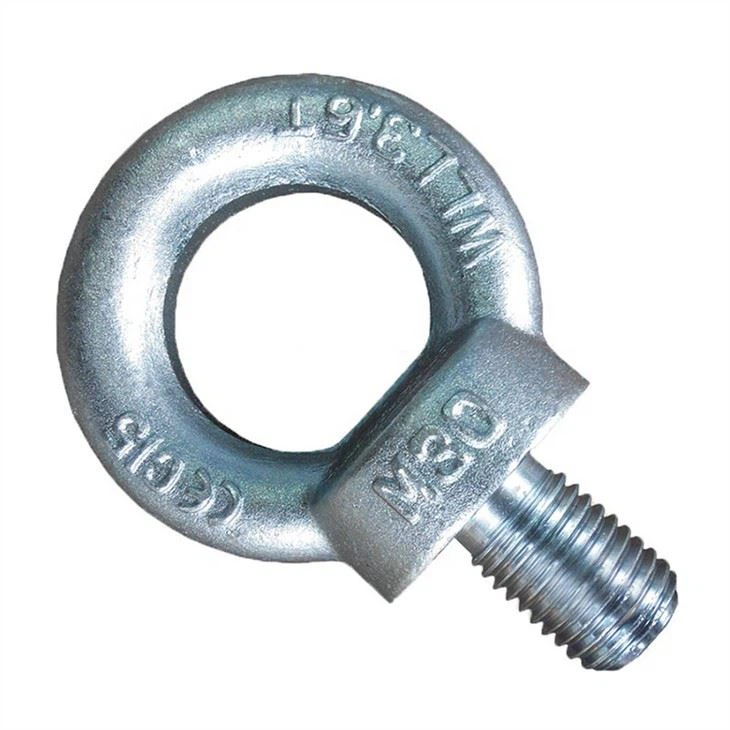

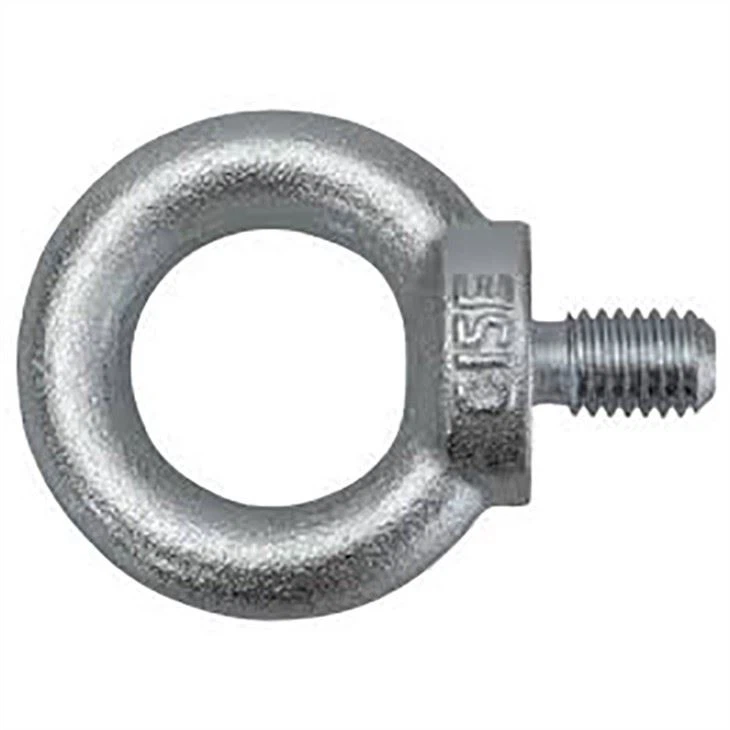

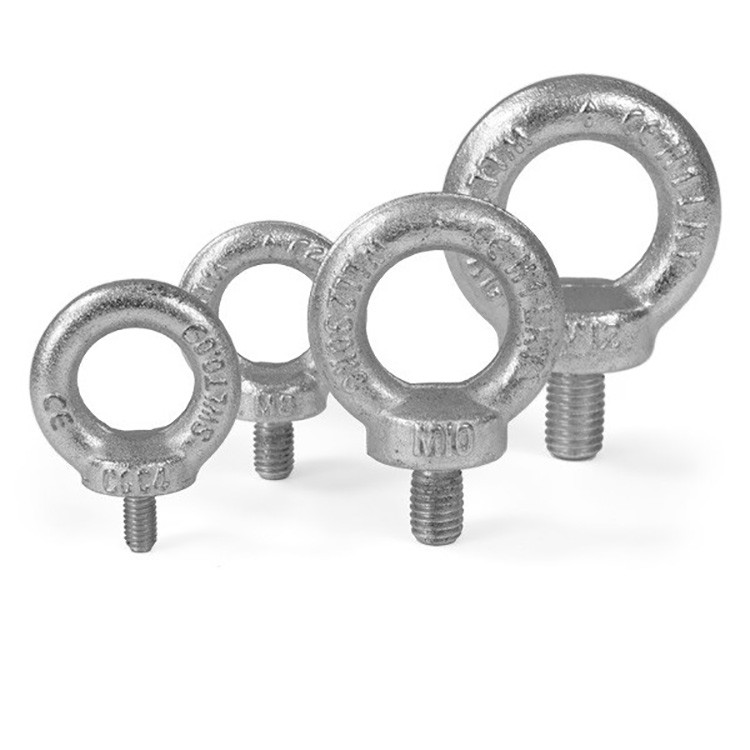

Eye bolts are commonly used components in various construction. These bolts are fully threaded and will come with a collar or shoulder depending on your requirements.

They are galvanised and come with extra strength for increased reliability and load bearing.

Grade:4/6/8/10/12

Finish:Zinc, Plain,Black.

material: Stainless steel, carbon steel and other metal materials

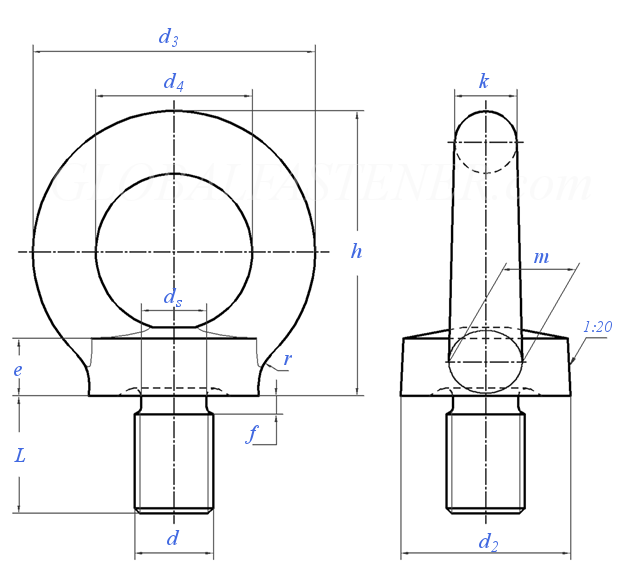

Screw Thread		M6	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33
d
d2	Nominal Size	20	20	25	30	35	35	40	40	50	50	65	65	75
	min	19.5	19.5	24.5	29.5	34.5	34.5	39.5	39.5	49.4	49.4	64.3	64.3	74.3
	max	20.9	20.9	25.9	30.9	36.1	36.1	41.1	41.1	51.2	51.2	66.3	66.3	76.5
d3	Nominal Size	36	36	45	54	63	63	72	72	90	90	108	108	126
	min	35.5	35.5	44.5	53.5	62.5	62.5	71.5	71.5	89.4	89.4	107.3	107.3	125.2
	max	37.1	37.1	46.1	55.1	64.1	64.1	73.1	73.1	91.2	91.2	109.5	109.5	127.7
d4	Nominal Size	20	20	25	30	35	35	40	40	50	50	60	60	70
	min	19.1	19.1	24.1	29.1	33.9	33.9	38.9	38.9	48.8	48.8	58.7	58.7	68.5
	max	20.5	20.5	25.5	30.5	35.5	35.5	40.5	40.5	50.6	50.6	60.7	60.7	70.7
e	Nominal Size	6	6	8	10	12	12	14	14	18	18	22	22	26
	min	5.5	5.5	7.5	9.5	11.5	11.5	13.5	13.5	17.5	17.5	21.4	21.4	25.3
	max	6.9	6.9	8.9	10.9	12.9	12.9	14.9	14.9	19.1	19.1	23.2	23.2	27.3
f	max	2.5	2.5	3	3.5	4	4	5	5	6	6	7	7	8
ds	max=nominal size (h15)	4.4	6	7.7	9.4	11	13	14.4	16.4	18.4	19.6	22.6	25	28
ds	min	4.22	5.82	7.48	9.18	10.73	12.73	14.13	16.13	18.07	19.27	22.29	24.67	27.61
h	Nominal Size	36	36	45	53	62	62	71	71	90	90	109	109	128
	min	35.5	35.5	44.5	52.5	61.5	61.5	70.5	70.5	89.4	89.4	108.3	108.3	127.2
	max	37.1	37.1	46.1	54.1	63.1	63.1	72.1	72.1	91.2	91.2	110.5	110.5	129.7
k	Nominal Size	8	8	10	12	14	14	16	16	20	20	24	24	28
	min	7.5	7.5	9.5	11.5	13.5	13.5	15.5	15.5	19.5	19.5	23.4	23.4	27.3
	max	8.9	8.9	10.9	12.9	14.9	14.9	16.9	16.9	21.1	21.1	25.2	25.2	29.3
L	Nominal Size (js15)	13	13	17	20.5	27	27	30	30	36	36	45	45	54
	min	12.65	12.65	16.65	20.08	26.58	26.58	29.58	29.58	35.5	35.5	44.5	44.5	53.5
	max	13.35	13.35	17.35	20.92	27.42	27.42	30.42	30.42	36.5	36.5	45.5	45.5	54.5
m	Nominal Size	10	10	12	14	16	16	19	19	24	24	28	28	32
	min	9.5	9.5	11.5	13.5	15.5	15.5	18.5	18.5	23.5	23.5	27.4	27.4	31.3
	max	10.9	10.9	12.9	14.9	16.9	16.9	19.9	19.9	25.1	25.1	29.2	29.2	33.3
r	≈	4	4	4	6	6	6	8	8	12	12	15	15	18
per unit ≈ kg		0.0572	0.06	0.11	0.18	0.27	0.28	0.438	0.45	0.725	0.74	1.624	1.66	2.596
