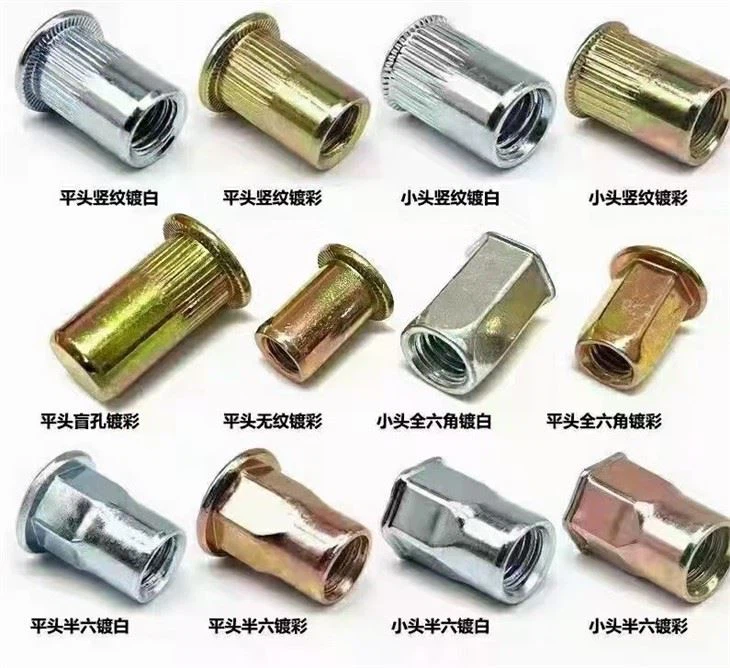

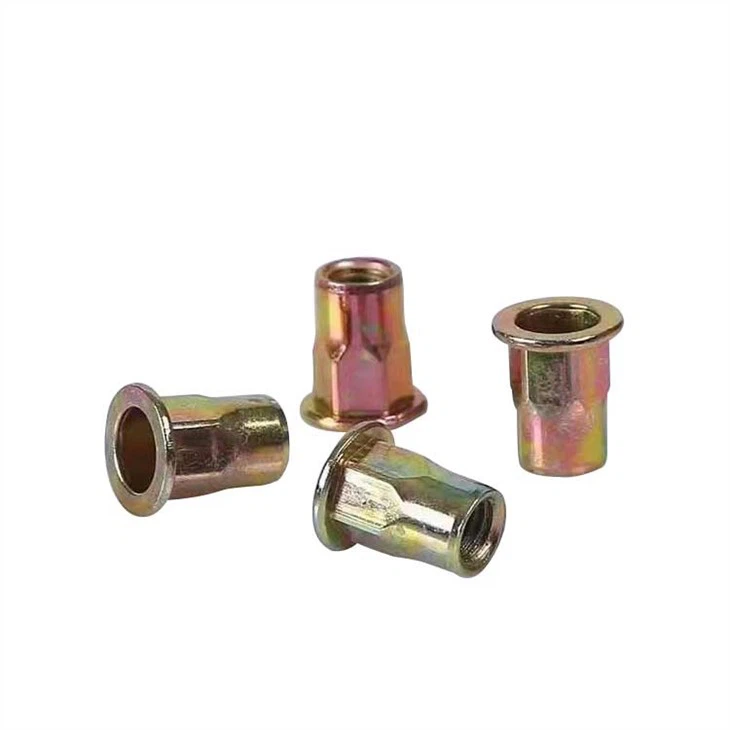

Flat Head Full Hexagon Rivet nuts provide a strong captivated thread in thin panels and in applications where only one side of the panel is accessible such as box or tube section
Available in steel and stainless steel, they can be installed into panels as thin as 0.5mm and do not suffer from the maximum hardness limitations of self-clinching nuts so are suitable for installation into hard or non-ductile panels. Requiring special tooling for installation – tools range from very low cost hand tools for low volume, to air powered automatic installation guns for high volume applications.

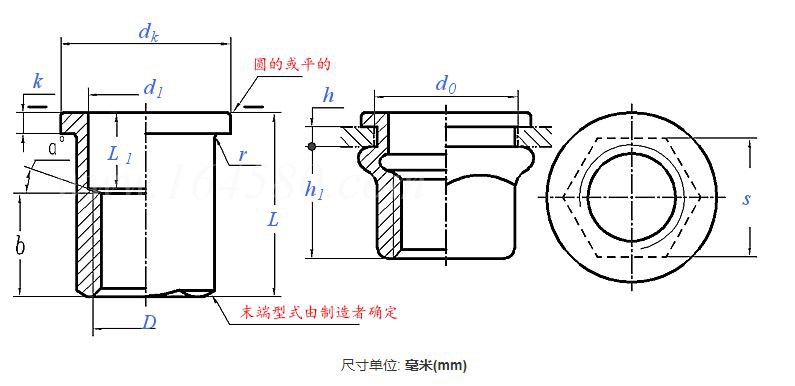

| Thread specification | ||||||||
| D | ||||||||
| P | pitch | 1 | 1.25 | 1.5 | 1 | 1.75 | 1.5 | |
| s | nominal | 9 | 11 | 13 | 13 | 15 | 15 | |
| maximum | 8.97 | 10.97 | 12.97 | 12.97 | 14.97 | 14.97 | ||
| least value | 8.9 | 10.9 | 12.9 | 12.9 | 14.9 | 14.9 | ||
| d1 | least value=pitch (H12) | 8 | 10 | 11.5 | 11.5 | 13.5 | 13.5 | |
| maximum | 8.15 | 10.15 | 11.68 | 11.68 | 13.68 | 13.68 | ||
| dk | maximum | 12 | 14 | 16 | 16 | 18 | 18 | |
| k | 1.5 | 1.5 | 1.8 | 1.8 | 1.8 | 1.8 | ||
| r | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.3 | ||
| d0 | least value=pitch | 9 | 11 | 13 | 13 | 15 | 15 | |
| maximum | 9.15 | 11.15 | 13.15 | 13.15 | 15.15 | 15.15 | ||
| h1 | reference | 11 | 12.3 | 15 | 15 | 17.5 | 17.5 | |
| L1 (reference) | – | – | – | – | – | – | ||
| Riveting thickness is recommended h | – | – | – | – | – | – | ||
| Thousand pieces steel weight≈kg | – | – | – | – | – | – | ||
| ①,b=(1.25~1.5)D | ||||||||
| ②,a° Determined by the manufacturer。 | ||||||||
| ③,L（maximum） | ||||||||
| ④,Technical conditions according to GB/T 17880.6 The provisions of the。 | ||||||||
