DIN 935-1 – 2013 Hexagon Slotted Nuts

DIN 935-1 – 2013 Hexagon Slotted Nuts Description: “DIN 935-1 – 2013 Hexagon Slotted Nuts. castle nuts, or castellated nuts, are known for their distinct appearance – a nut with slots cut into the end, like the parapet of a medieval castle. Castle nuts are positive locking devices and used…

Additional information

Description: “DIN 935-1 – 2013 Hexagon Slotted Nuts.

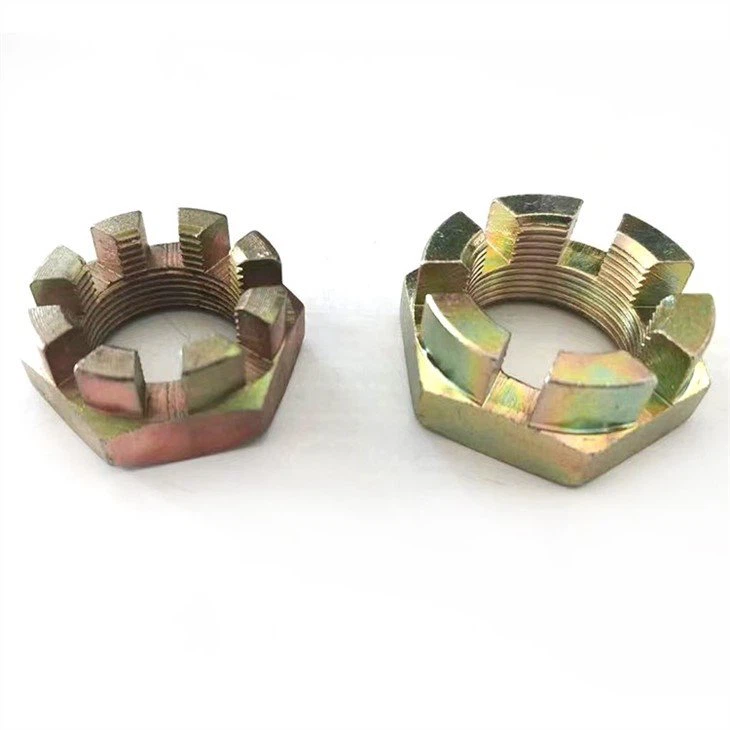

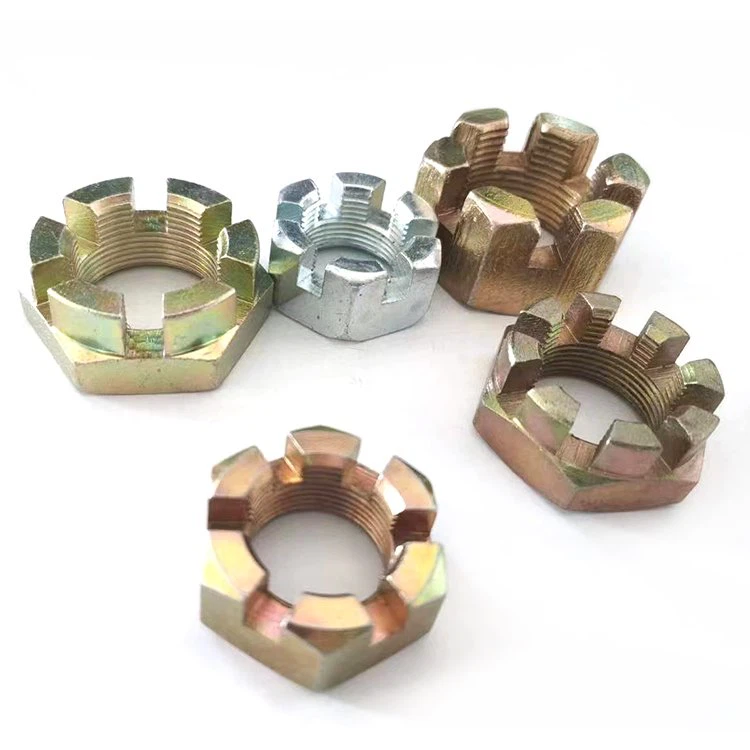

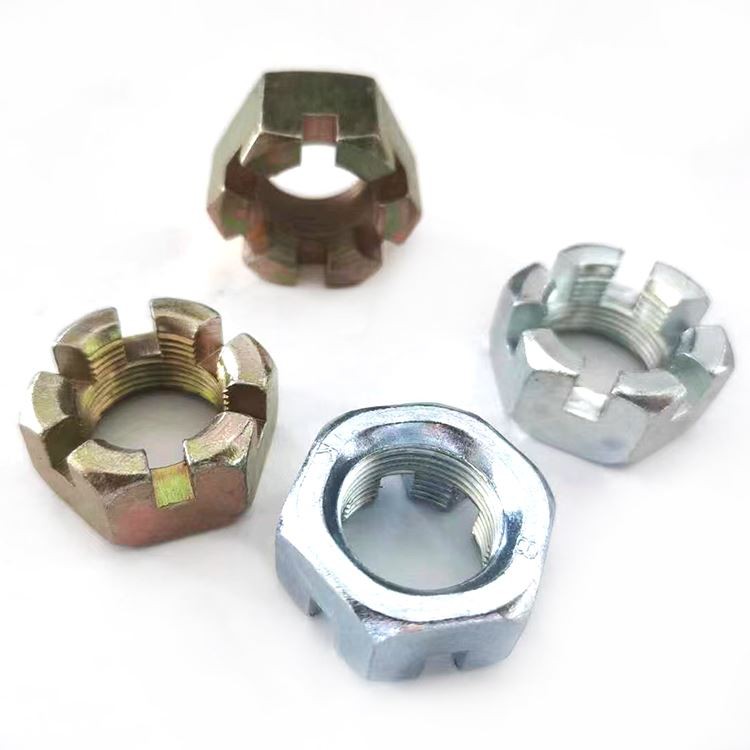

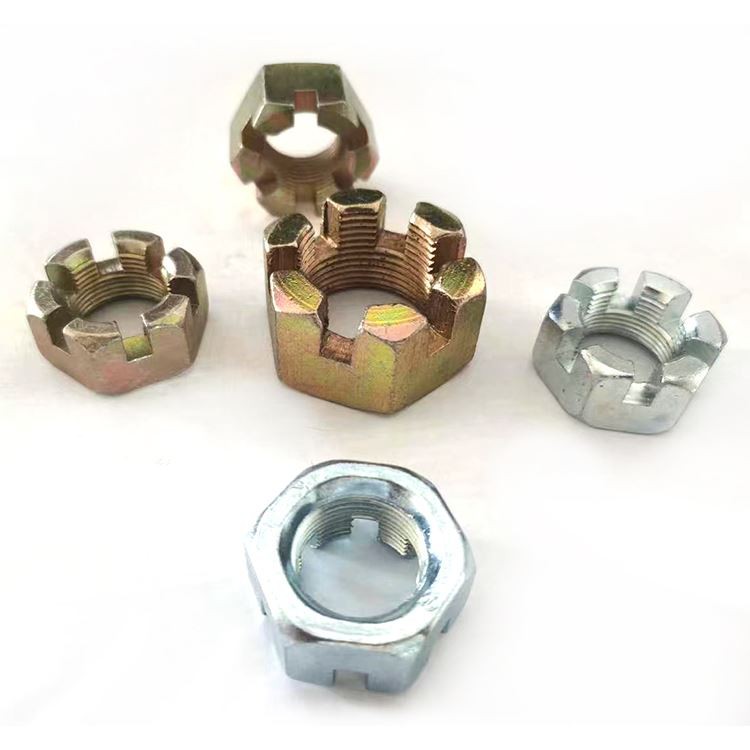

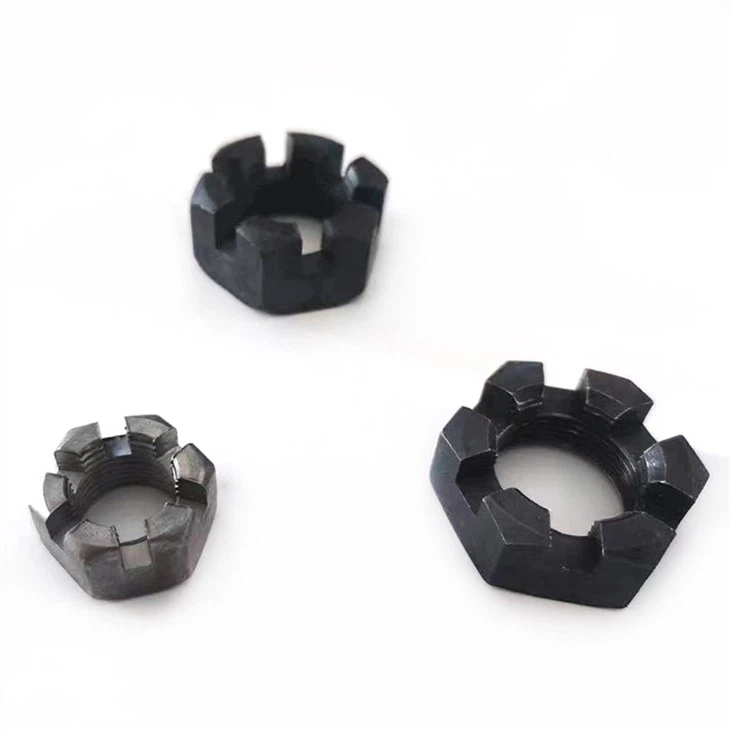

castle nuts, or castellated nuts, are known for their distinct appearance – a nut with slots cut into the end, like the parapet of a medieval castle. Castle nuts are positive locking devices and used in conjunction with a fastener to lock. ”

Steel: 4, 6,8, 10,12

User: They are usually used to fix the position of the wheel bearings on the main shaft

material: Stainless steel, carbon steel and other metal materials

Thread Size	M4	M5	M6	(M7)	M8	M10	M10	M12	M12	(M14)	(M14)	M16
d
P	Pitch (Coarse thread)		0.7	0.8	1	1	1.25	1.5	1.5	1.75	1.75	2	2	2
Fine thread		–	–	–	–	1	1.25	1.25	1.5	1.5	1.5	1.5	1.5
Fine thread		–	–	–	–	–	1	1	1.25	1.25	–	–	–
da	min		4	5	6	7	8	10	10	12	12	14	14	16
max		4.6	5.75	6.75	7.75	8.75	10.8	10.8	13	13	15.1	15.1	17.3
de	max		/	/	/	/	/	/	/	16	17	18	19	22
min		/	/	/	/	/	/	/	15.57	16.57	17.57	18.48	21.48
dw	min		5.8	6.8	8.8	9.5	11.3	14.3	15.3	16.2	17.2	19.2	20.2	22.2
e	min		7.66	8.79	11.05	12.12	14.38	17.77	18.9	20.03	21.1	23.35	24.49	26.75
m	max=nominal size		5	6	7.5	8	9.5	12	12	15	15	16	16	19
min		4.7	5.7	7.14	7.64	9.14	11.57	11.57	14.57	14.57	15.57	15.57	18.48
m1	2.3	3	3.8	4.2	4.9	6.1	6.1	7.7	7.7	8.2	8.2	9.8
n	min		1.2	1.4	2	2	2.5	2.8	2.8	3.5	3.5	3.5	3.5	4.5
max		1.45	1.65	2.25	2.25	2.75	3.05	3.05	3.8	3.8	3.8	3.8	4.8
s	max=nominal size		7	8	10	11	13	16	17	18	19	21	22	24
min		6.78	7.78	9.78	10.73	12.73	15.73	16.73	17.73	18.67	20.67	21.67	23.67
w	min		2.9	3.7	4.7	5.2	6.14	7.64	7.64	9.64	9.64	10.57	10.57	12.57
max		3.2	4	5	5.5	6.5	8	8	10	10	11	11	13
Series ②	Split Pin as in DIN 94		1×10	1.2×12	1.6×14	1.6×14	2×16	2.5×20	2.5×20	3.2×22	3.2×22	3.2×25	3.2×25	4×28
per 1000 units ≈ kg	1.12	2.3	3.16	3.96	7.35	15.8	15.8	20	20	27	27	38.9

Thread Size	(M18)	M20	(M22)	(M22)	M24	(M27)	M30	(M33)	M36	(M39)	M42	(M45)
d
P	Pitch (Coarse thread)		2.5	2.5	2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5
Fine thread		1.5	2	1.5	1.5	2	2	2	2	3	3	3	3
Fine thread		2	1.5	2	2	–	–	–	–	–	–	–	–
da	min		18	20	22	22	24	27	30	33	36	39	42	45
max		19.5	21.6	23.8	23.8	25.9	29.2	32.4	35.6	38.9	42.1	45.4	48.6
de	max		25	28	30	32	34	38	42	46	50	55	58	62
min		24.3	27.3	29.3	31	33	37	41	45	49	53.8	56.8	60.8
dw	min		24.8	27.7	29.5	31.3	33.2	38	42.7	46.6	51.1	55.9	60.6	64.7
e	min		29.56	32.95	35.03	37.29	39.55	45.2	50.85	55.37	60.79	66.44	71.3	76.95
m	max=nominal size		21	22	26	26	27	30	33	35	38	40	46	48
min		20.16	21.16	25.16	25.16	26.16	29.16	32	34	37	39	45	47
m1	11.2	11.9	13.5	13.5	14.2	16.6	18.2	19.8	21.9	23.5	25.9	27.5
n	min		4.5	4.5	5.5	5.5	5.5	5.5	7	7	7	7	9	9
max		4.8	4.8	5.8	5.8	5.8	5.8	7.36	7.36	7.36	7.36	9.36	9.36
s	max=nominal size		27	30	32	34	36	41	46	50	55	60	65	70
min		26.16	29.16	31	33	35	40	45	49	53.8	58.8	63.1	68.1
w	min		14.57	15.57	17.57	17.57	18.48	21.48	23.48	25.48	28.48	30.28	33.38	35.38
max		15	16	18	18	19	22	24	26	29	31	34	36
Series ②	Split Pin as in DIN 94		4×32	4×36	5×36	5×36	5×40	5×45	6.3×50	6.3×56	6.3×63	6.3×71	8×71	8×80
per 1000 units ≈ kg	57.5	75.2	93	93	131	192	264	333	447	584	710	860

Thread Size	M48	(M52)	M56	(M60)	M64	(M68)	M72	(M76)	M80	(M85)	M90	M100
d
P	Pitch (Coarse thread)		5	5	5.5	5.5	6	6	–	–	–	–	–	–
Fine thread		3	3	4	4	4	4	6	6	6	6	6	6
Fine thread		–	–	–	–	–	–	4	4	4	4	4	4
da	min		48	52	56	60	64	68	72	76	80	85	90	100
max		51.8	56.2	61	64.8	69.1	73.4	77.8	82.1	86.4	91.8	97.2	108
de	max		65	70	75	80	85	90	95	100	105	110	120	130
min		63.8	68.8	73.8	78.8	83.6	88.6	93.6	98.6	103.6	108.6	118.6	128.4
dw	min		69.4	74.2	78.7	83.4	88.2	92.9	97.7	102.4	107.2	111.9	121.1	135.4
e	min		82.6	88.25	93.56	99.21	104.86	110.51	116.16	121.81	127.46	133.11	144.08	161.02
m	max=nominal size		50	54	57	63	66	69	73	76	79	88	92	100
min		49	52.8	55.8	61.8	64.8	67.8	71.8	74.8	77.8	86.6	90.6	98.6
m1	29.1	32.3	34.7	37.1	39.3	41.7	44.9	47.3	49.7	52.9	56.1	62.5
n	min		9	9	9	11	11	11	11	11	11	14	14	14
max		9.36	9.36	9.36	11.43	11.43	11.43	11.43	11.43	11.43	14.43	14.43	14.43
s	max=nominal size		75	80	85	90	95	100	105	110	115	120	130	145
min		73.1	78.1	82.8	87.8	92.8	97.8	102.8	107.8	112.8	117.8	127.5	142.5
w	min		37.38	41.38	44.38	47.38	50.26	53.26	57.26	60.26	63.26	67.26	71.26	79.26
max		38	42	45	48	51	54	58	61	64	68	72	80
Series ②	Split Pin as in DIN 94		8×80	8×90	8×100	10×100	10×100	10×112	10×112	10×125	10×140	13×140	13×140	13×160
per 1000 units ≈ kg	1060	1300	1500	1800	2150	2500	2900	3300	3700	4100	5450	7600
